Reno R84001 RENO-HBL096-DC24V - 96W - LUMAFLEX Indoor Constant Voltage LED Driver - DC24V - 120-277V

  • Brand: Reno LED Lighting
  • Product Code: RENO-HBL096-DC24V
  • Reward Points: 7759
  • Availability: 10
  • Unit Price: $77.60
  • Price in reward points: 776000

0 reviews / Write a review

Reno R84001 RENO-HBL096-DC24V - 96W - LUMAFLEX Indoor Constant Voltage LED Driver - DC24V - 120-277V

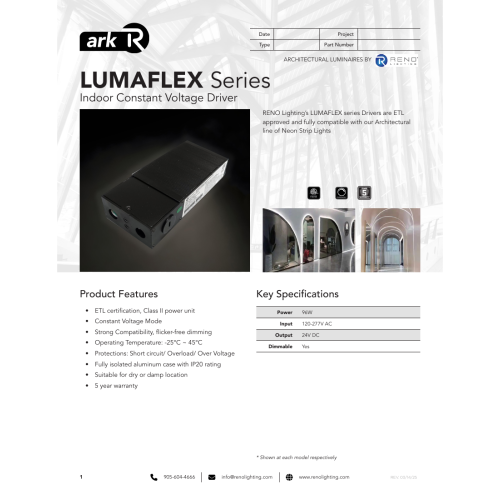

PDF RENO-HBL096-DC24V Specification Sheet

RENO Lighting’s LUMAFLEX series drivers are ETL approved and fully compatible with the Architectural line of Neon Strip Lights. This indoor constant voltage driver delivers 96W at 24V DC with strong compatibility and flicker-free dimming, housed in a fully isolated aluminum case.

Key Specifications:

  • Rated Power: 96W (4.0A)
  • Input: 120-277V AC
  • Output: 24V DC constant voltage
  • Dimmable: Yes, flicker-free dimming
  • ETL certification, Class II power unit
  • Operating Temperature: -25°C to +45°C
  • Protections: short circuit / overload / over voltage
  • Suitable for dry or damp locations (IP20)
Certifications ETL certified, Class II power unit
Environmental Conditions Indoor
Location Rating Suitable for dry or damp locations
Protections Short circuit / overload / over voltage
Power Consumption (Watts) 96W
Output Voltage DC24V
Dimensions Body 6.50" (165 mm) L x 2.76" (70 mm) W x 1.39" (35.2 mm) H; base length 6.97" (177 mm)
Operating Temperature -25°C to +45°C
Dimming Yes, flicker-free dimming
Input Voltage AC120-277V
Output Power 96W (4.0A rated current)
Housing Fully isolated aluminum case, IP20 rated
Type LED Driver
Compatibility Fully compatible with Reno Architectural Neon Strip Lights
Warranty 5-year warranty
