Reno R83010 RENO-EM-EX15 - 15W - All Weather Emergency LED Driver - External Mount - 100-347Vac - 50-60Hz - 90 mins Backup

  • Brand: Reno LED Lighting
  • Product Code: RENO-EM-EX15
  • Reward Points: 27656
  • Availability: 10
  • Unit Price: $276.56
  • Price in reward points: 2765600

0 reviews / Write a review

Reno R83010 RENO-EM-EX15 - 15W - All Weather Emergency LED Driver - External Mount - 100-347Vac - 50-60Hz - 90 mins Backup

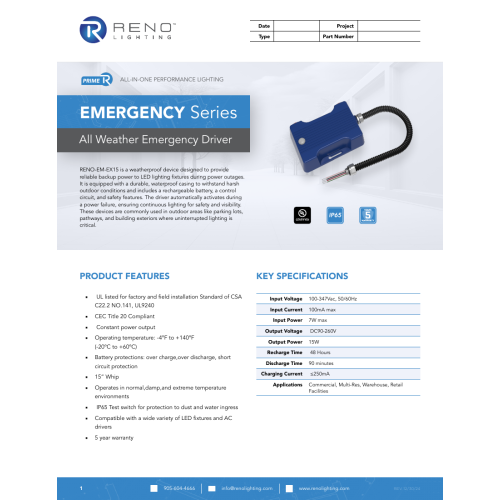

PDF RENO-EM-EX15 Specification Sheet

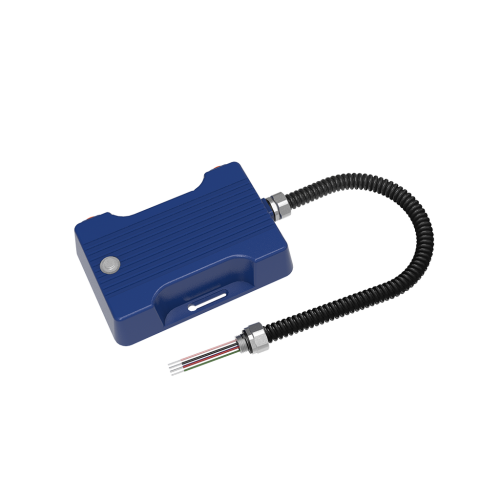

RENO-EM-EX15 is a weatherproof device designed to provide reliable backup power to LED lighting fixtures during power outages. It is equipped with a durable, waterproof casing to withstand harsh outdoor conditions and includes a rechargeable battery, a control circuit, and safety features. The driver automatically activates during a power failure, ensuring continuous lighting for safety and visibility. Commonly used in outdoor areas like parking lots, pathways, and building exteriors where uninterrupted lighting is critical.

Key Specifications:

  • Output Power: 15W constant power output
  • Input Voltage: 100-347Vac, 50/60Hz
  • Output Voltage: DC90-260V
  • Recharge Time: 48 hours
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • UL listed for factory and field installation, CEC Title 20 Compliant
  • Battery protections: over charge, over discharge, short circuit protection
Battery Case Dimensions 6.5" x 1.61" x 0.98" (165 x 41 x 24.9 mm)
Certifications UL listed for factory and field installation (CSA C22.2 No.141, UL9240); CEC Title 20 Compliant
Driver Dimensions 7.4" x 1.5" x 1.14" (188 x 38 x 29 mm)
Input Voltage 100-347Vac, 50/60Hz
Output Power 15W constant power output
Wiring 15-inch whip leads
Discharge Time 90 minutes emergency operation
Input Power 7W max
Output Voltage DC 90-260V
Battery Type Cold-rated Li-ion rechargeable battery
Warranty 5-year warranty
Applications Commercial, Multi-Residential, Warehouse, Retail Facilities
Battery Protection Over-charge, over-discharge and short-circuit protection
Charging Current ≤250mA
Ingress Protection IP65-rated test switch against dust and water ingress
Operating Environment Normal, damp and extreme temperature environments
Rating All Weather
Power Consumption (Watts) 15W
Input Current 100mA max
Recharge Time 48 hours
Compatibility Compatible with a wide variety of LED fixtures and AC drivers
Mounting External Mount
Operating Temperature -4°F to +140°F (-20°C to +60°C)
