Zcell Z12V55AH 12V 55Ah Sealed Lead Acid Battery

Zcell Z12V55AH 12V 55Ah Sealed Lead Acid Battery

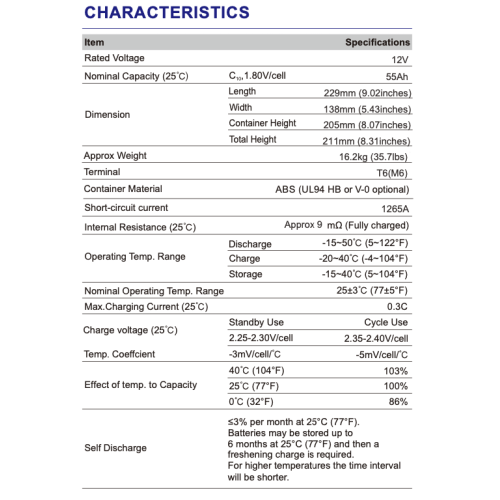

Z12V55AH Specification Sheet

The Zcell Z12V55AH is a 12V 55Ah sealed lead acid (SLA) rechargeable battery: a maintenance-free, valve-regulated (VRLA) replacement battery for emergency lighting units, exit signs, UPS backup systems, security alarms and fire panels. Nominal capacity 55Ah (C10, 1.80V/cell at 25°C), durable ABS container (UL94 HB or V-0 optional), T6(M6) terminals, sized 9.02" L x 5.43" W x 8.31" H and weighing approx. 35.7 lbs (16.2kg).

Key Specifications:

• Voltage: 12V
• Capacity: 55Ah (C10, 1.80V/cell)
• Dimensions: 9.02" L x 5.43" W x 8.31" H (229 x 138 x 211mm)
• Weight: 35.7 lbs (16.2kg)
• Terminal: T6(M6)
• Container Material: ABS (UL94 HB or V-0 optional)
• Internal Resistance: Approx 9 mΩ (Fully charged)
• Operating Temperature: Discharge -15~50°C (5~122°F), Charge -20~40°C (5~104°F)
