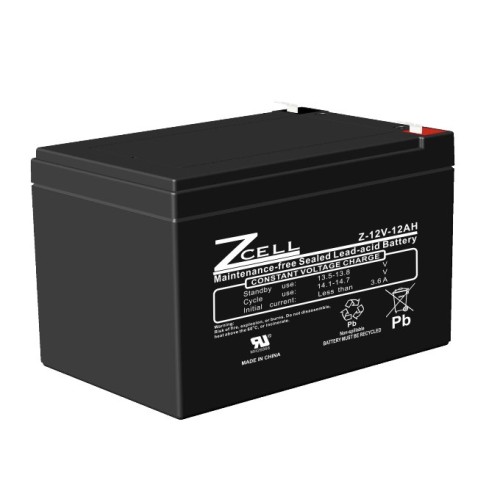

Zcell Z12V12AH 12V 12Ah Sealed Lead Acid Battery

Zcell Z12V12AH 12V 12Ah Sealed Lead Acid Battery

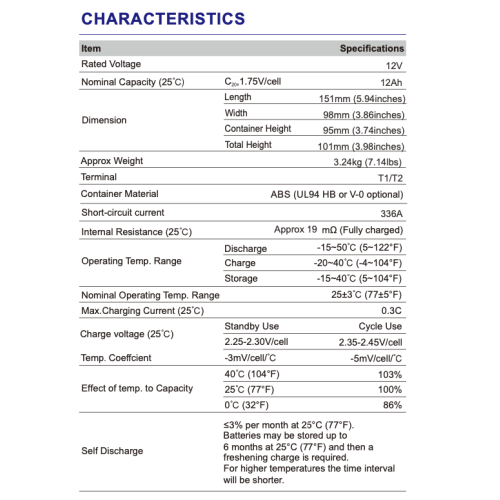

Z12V12AH Specification Sheet

The Zcell Z12V12AH is a 12V 12Ah sealed lead acid (SLA) rechargeable battery: a maintenance-free, valve-regulated (VRLA) replacement battery for emergency lighting units, exit signs, UPS backup systems, security alarms and fire panels. Nominal capacity 12Ah (C20, 1.75V/cell at 25°C), durable ABS container (UL94 HB or V-0 optional), T1/T2 terminals, sized 5.94" L x 3.86" W x 3.98" H and weighing approx. 7.14 lbs (3.24kg).

Key Specifications:

• Voltage: 12V
• Capacity: 12Ah (C20, 1.75V/cell)
• Dimensions: 5.94" L x 3.86" W x 3.98" H (151 x 98 x 101mm)
• Weight: 7.14 lbs (3.24kg)
• Terminal: T1/T2
• Container Material: ABS (UL94 HB or V-0 optional)
• Internal Resistance: Approx 19 mΩ (Fully charged)
• Operating Temperature: Discharge -15~50°C (5~122°F), Charge -20~40°C (5~104°F)
