Votatec - LED UFO High Bay - 3CCT Adjustable - 300W - Watts Adjustable - 120-347V - Dimmable - With Plug for Sensor - Black Finish - AST-HB23-300WF1BT2C1-BH35/40/50WDRound LED High Bay

  • Brand: Votatec
  • Product Code: AST-HB23-300WF1BT2C1-BH35/40/50WD
  • Reward Points: 32010
  • Availability: In Stock
  • Unit Price: $350.00
  • Price in reward points: 3201000

0 reviews / Write a review

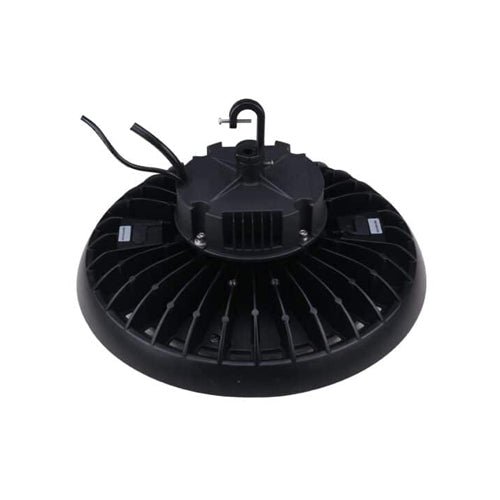

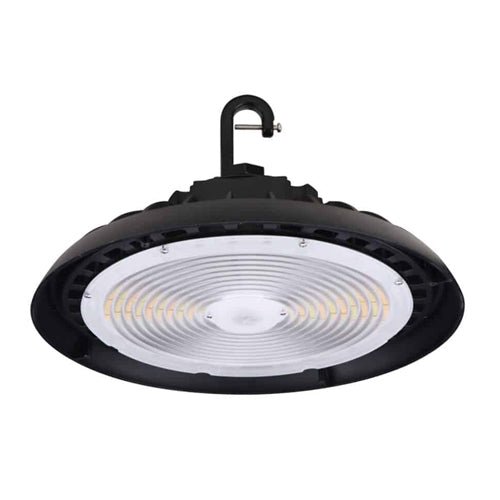

Votatec UFO High Bay - 300W/270W/240W - 3CCT Adjustable - 120-347V - AST-HB23-300WF1BT2C1-BH35/40/50WD

PDF Specification Sheet

High-output UFO LED high bay with selectable 300W/270W/240W output, up to 44,400 lumens and 3500K/4000K/5000K color temperature, replacing 1000W HID. Ships with a 6ft cable and sensor plug for high-ceiling warehouses and distribution centres.

Key Specifications:

  • Product Type: UFO High Bay
  • Wattage: 300W/270W/240W Adjustable
  • Lumens: 35500-44400
  • Color Temperature: 3500K/4000K/5000K Adjustable
  • Voltage: 120-347V
  • Dimmable: Yes (0-10V)
  • CRI: >80
  • Life Hours: 50000
  • Warranty: 5 Years
  • Certification: cUL & DLC 5.1 Premium
  • Finish: Black
  • Mounting: Hook Mount, 6ft Cable, Plug for Sensor
CRI >80
DLC Rating DLC Premium
IP Rating IP65
Lens Material PC
MOD 13.78in
Operating Frequency 50-60Hz
Size 7.64in
Surge Protection Built-in surge protection-6KV
Voltage 120-347V
Finish Black
Lumens 35500LM/40000LM/44400LM
Voltage Rating 120-347V
Wattage 300W/270W/240W Adjustable
Beam Angle 90°
CRI >80
Mounting Hook Mount, 6ft Cable, Plug for Sensor
Warranty 5 Years
Operating Temperature -40C(-40F) TO 50C(122F)
DLC Approved Yes
HID Equivalent 1000W
Lens PC
Location Rating Wet
MOL 7.64in
Sensor Optional UFO DC sensor and remote control support; accessories sold separately
Standard UL, cUL
Viewing Angle 90°
Wattage 240W/270W/300W
Housing Pure aluminum shell / die-cast style black housing
Product Type UFO High Bay
Color Temperature 3500K/4000K/5000K Adjustable 3500K/4000K/5000K Adjustable
Dimmable Yes (0-10V)
Working Temp. -40°C~+50°C
Power Factor >0.9
Life Hours 50000
Weight 9.6
Certification(s) cUL & DLC 5.1 Premium
