Votatec - LED Area Light - 240/300/400/500W - 120-347V - 24,000-48,000 Lumens - 3000/4000/5000K - Rated for wet location - HD-SB05-500WD-G-T3050-SPArea Light

Votatec - LED Area Light - 240/300/400/500W - 120-347V - 24,000-48,000 Lumens - 3000/4000/5000K - Rated for wet location - HD-SB05-500WD-G-T3050-SP

 Spec sheet

Features:

• Construction:
• Pure light aluminum shell provides optimal heat dissipation and high lumen efficacy
• Clear polycarbonate lens over LEDs provides a high light efficacy 143*145° beam angle.(Type 5)
• CCT and Power Select switches are placed discretely inside the driver housing
• 6' power cable and 6' dimming cable included in all congurations

• Mounting:

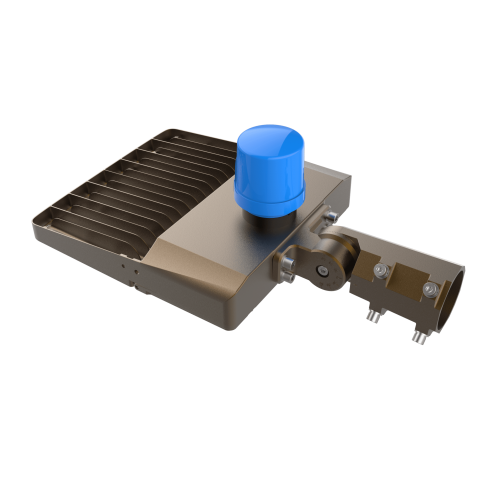

• SF bracket, TR bracket and RS bracket are available. Suitable for different installation scenarios.
• Can be mounted on round poles, square poles and walls.

• Performance Data:
• Available in 3000K/4000/5000K selectable
• color temperature
• 80+ CRI
• Electrical ratings: 120-347 V
• Estimated life of over 100 000 hours to L70
• 0-10 V dimming driver Dimming cables included with this luminaire
• 6kV surge protection (standard)
• Operating temperature: -40°C to 45°C (-40°F to 113°F)

• Compliances:
• cULus certified for wet locations
• IP65
